The "Destination Source Matrix Table" provides ethernet traffic statistics since the probe was started.
SNMP data are collected from the RMON probe. The probe should be compatible with the RMON MIB RFC1757.
To access the "Destination Source Matrix Table"
click on the icon
or select it in the Ethernet Layer menu option.

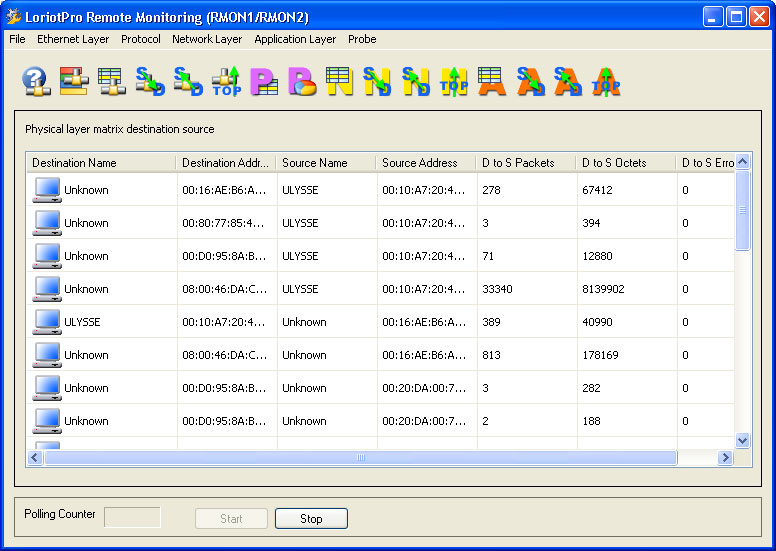

The Destination Source Matrix Table is displayed
Table description
| Column | Description |
|---|---|
| Source Name | The host source name retreived from the LoriotPro directory. If the host name is unknown LoriotPro is unable to detect or discover the MAC address or this host is dont declared in the directory. |
| Source address | The source physical address. |
| Destination Name | The host destination name retreived from the LoriotPro directory. If the host name is unknown LoriotPro is unable to detect or discover the MAC address or this host is dont declared in the directory. |
| Destination address | The destination physical address. mib object :matrixDSDestAddress |
| D to S Packets | The number of packets transmitted from the destination address to the
sourceaddress (this number includes bad packets). mib object :matrixDSPkts |
| D to S Octets | The number of octets (excluding framing bits but including FCS octets)
contained in all packets transmitted from the destination address to the
source address. mib object: matrixDSOctets |
| D to S Error Packets | The number of bad packets transmitted from the source address to the
destination address. mib object :matrixDSErrors |
Sorting column
You can sort column by a double click on the column header
