RMON GUI - Remote network MONitoring
Administrator handbook
|
|
RMON GUI - Remote network MONitoring
|
Table of contents |
|
The "ethernet packet size table" provides ethernet traffic statistics since the probe was started.
SNMP data are collected from the RMON probe. The probe should be compatible with the RMON MIB RFC1757.
To access the "ethernet packet size table"
click on the icon
or select it in the Ethernet Layer menu option.

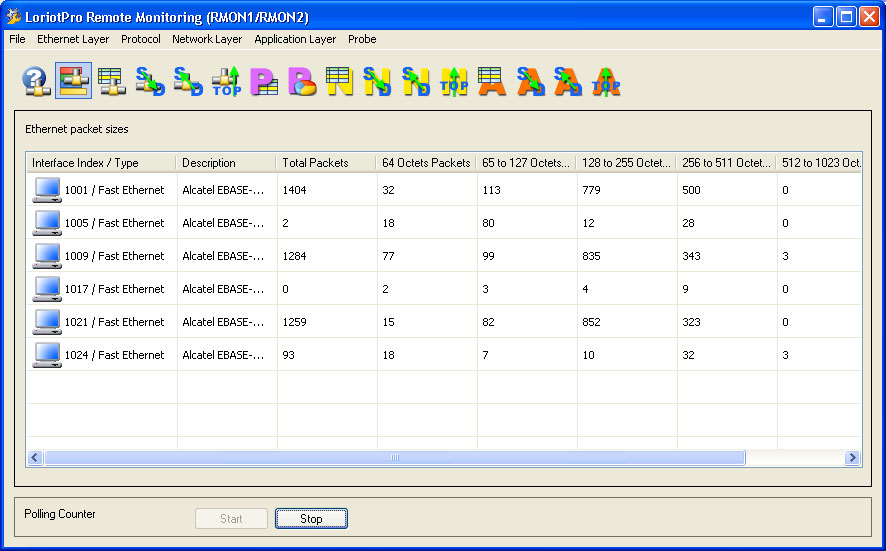

The Ethernet packet size table is displayed
Table description
| Column | Description |
|---|---|
| Interface Index / Type | Index of the interface working as an RMON Probe. Type of physical layer (Ethernet only) |
| Description | The description provided by the snmp agent for this interface |
| Total packets | Totals numbers of packets received |
| 64 Octet packets | The total number of packets (including bad packets) received that were
64 octets in length (excluding framing bits but including FCS octets). |
| 65 to 127 Octets | The total number of packets (including bad packets) received that were
between 65 and 127 octets in length inclusive (excluding framing bits
but including FCS octets). |
| 128 to 255 Octets | The total number of packets (including bad packets) received that were
between 128 and 255 octets in length inclusive (excluding framing bits
but including FCS octets). |
| 256 to 511 Octets | The total number of packets (including bad packets) received that were
between 256 and 511 octets in length inclusive (excluding framing bits
but including FCS octets). |
| 512 to 1023 Octets | The total number of packets (including bad packets) received that were
between 512 and 1023 octets in length inclusive (excluding framing bits
but including FCS octets). |
| 1024 to 1518 Octets | The total number of packets (including bad packets) received that were
between 1024 and 1518 octets in length inclusive (excluding framing bits
but including FCS octets). |
Sorting column
You can sort column by a double click on the column header
